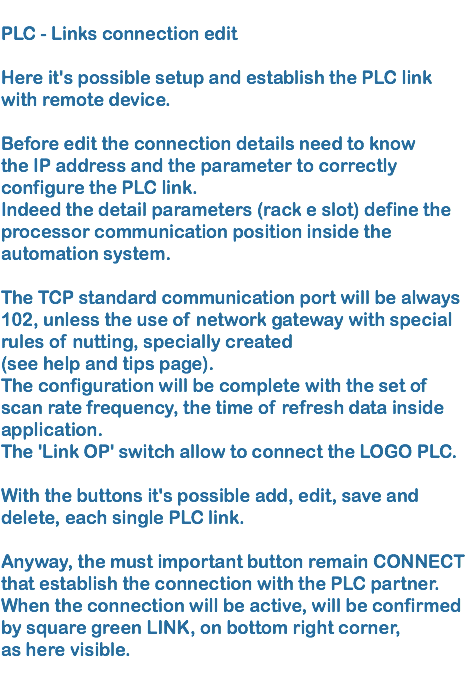

PLC - Links connection edit

Here it's possible setup and establish the PLC link
with remote device.

Before edit the connection details need to know
the IP address and the parameter to correctly configure the PLC link.
Indeed the detail parameters (rack e slot) define the processor communication position inside the automation system.

The TCP standard communication port will be always 102, unless the use of network gateway with special rules of nutting, specially created
(see help and tips page).
The configuration will be complete with the set of scan rate frequency, the time of refresh data inside application.
The 'Link OP' switch allow to connect the LOGO PLC.

With the buttons it's possible add, edit, save and delete, each single PLC link.

Anyway, the must important button remain CONNECT that establish the connection with the PLC partner.
When the connection will be active, will be confirmed by square green LINK, on bottom right corner,
as here visible. When the connection is active, will be possible,
by button on top or by swipe, reach the special
status and datetime pages.

These pages contain informations from PLC and permit to also to read and setup PLC date and time.
Only for S7.300 and S7.400 models.
